RF-N05-CP

Alternative to 9933-05-BQ

RF-N05-CP as 100% alternative to 9933-05-BQ

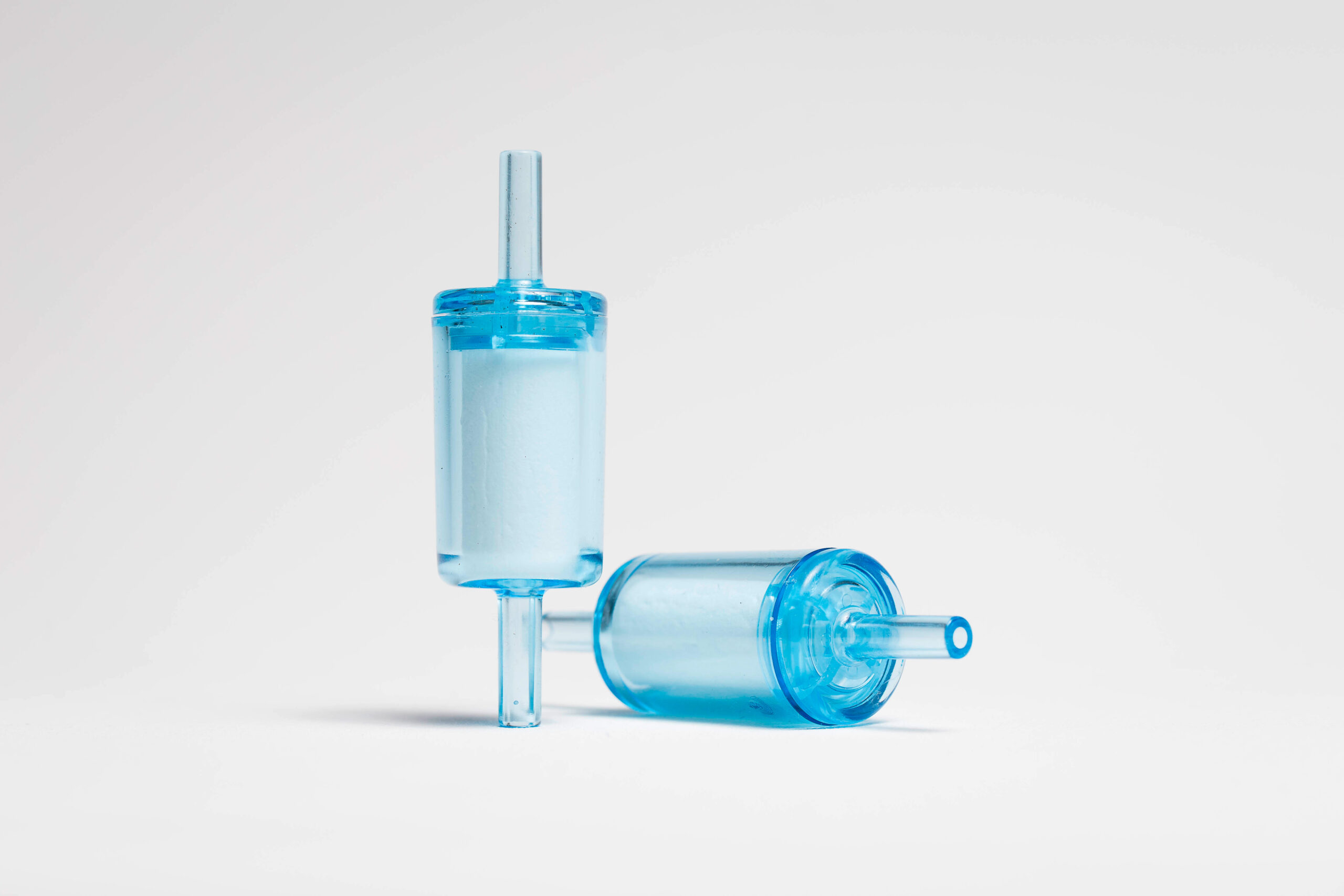

Disposable in-line filters are small filter housings made of PVDF or high-quality Nylon PA 12 with a slightly bluish tint. Depending on the desired filter efficiency, the corresponding particulate microfibre glass filter element is welded in. Disposable in-line filters are inexpensive, small filter units with hose connections for filtration of gases, compressed air and liquids.

In-Line-Filter-replacment for-alternative for-crossreference-9933-03-AAQ-9933-03-AQ-9933-03-BQ-9933-03-CQ-9933-03-DQ-9933-05-AAQ-9933-05-AQ-9933-05-BQ-9933-05-CQ-9933-05-DQ-9900-05-BK-9922-05-AAQ-9922-05-AQ-9922-05-BQ-9922-05-CQ-9922-05-DQ-9933-11-AAQ-9933-11-AQ-9933-11-BQ-9933-11-CQ-9933-11-DQ-8833-11-BX-8833-11-DX

RF-N05-CP – technical data



Main Connection

6.3 mm

Port Connection Type

Tube

Filtration Efficiency

99.99 % @ 0.01 micron particles

Outer diameter

25.4 mm

Length

82 mm

Maximum Pressure

40°C 7 Bar

Maximum Pressure Drop

1 Bar

Max. Operating Temperature

At 0 Bar pressure 110°C

Materials of Construction

Nylon
